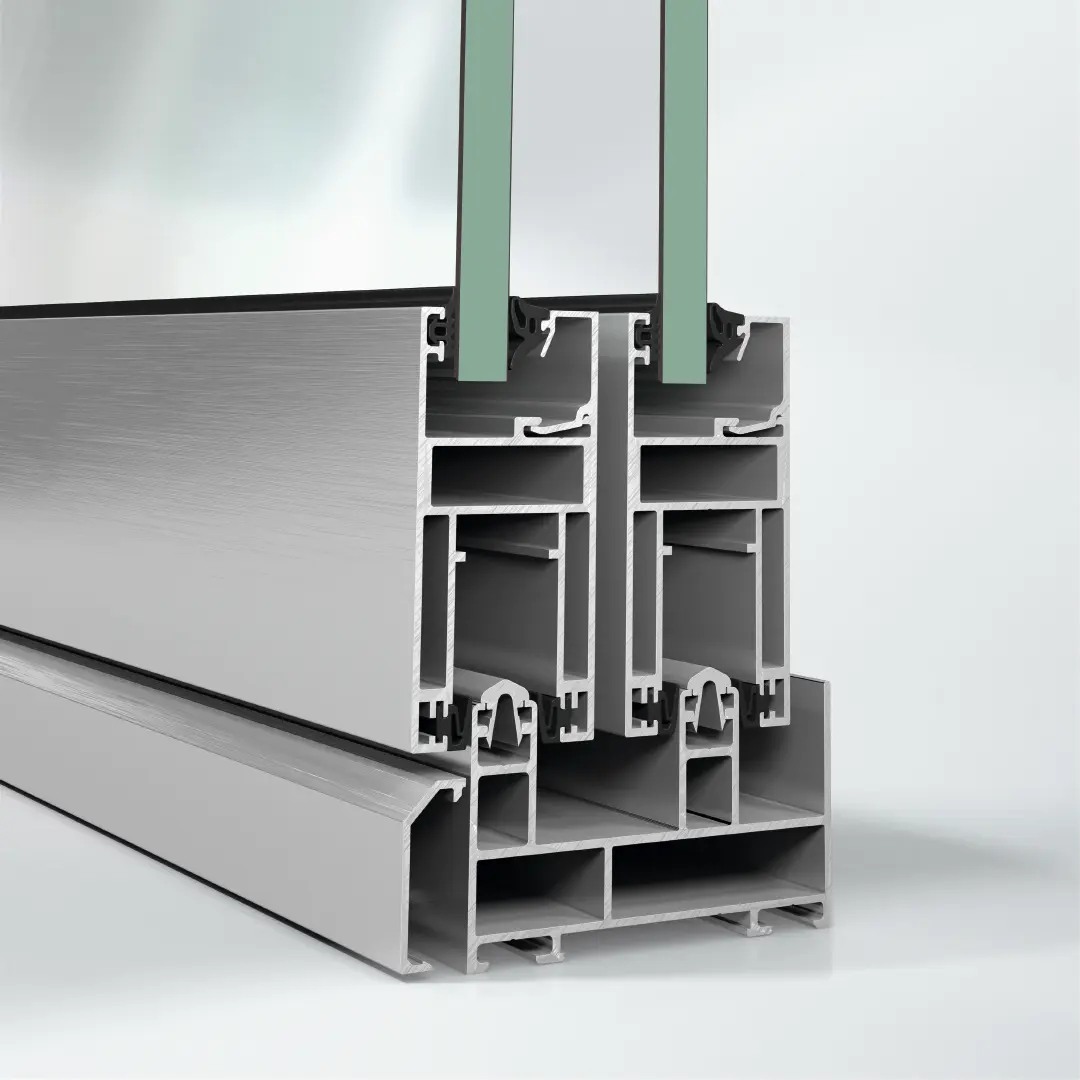

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Schüco

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Sliding System ASS 46 SC Cubic Design

Rails	1, 2 or 3 rails
Nominal	2000x3000 mm max vent
Features	Concealed vent, Cubic corner solution, 1-track outer frame vent side
Material	aluminium
Side jamb mm	64
Max weight kg	250
Tested cycles	10000
U value frame	Uw = 1.4 W/m².K
Locking points	1 to 5
Acoustic rating	Ratr = 38 dB (glazing 10/12/66.2 S)
U value glazing	Ug = 1.1 W/m².K
Operating force kg	5
Max leaf dimensions	2000x3000 mm
Central interlock mm	39.5
Glazing thickness mm	28
Air water wind rating	A*4 E 7B VC2
Central percussion stile mm	91
