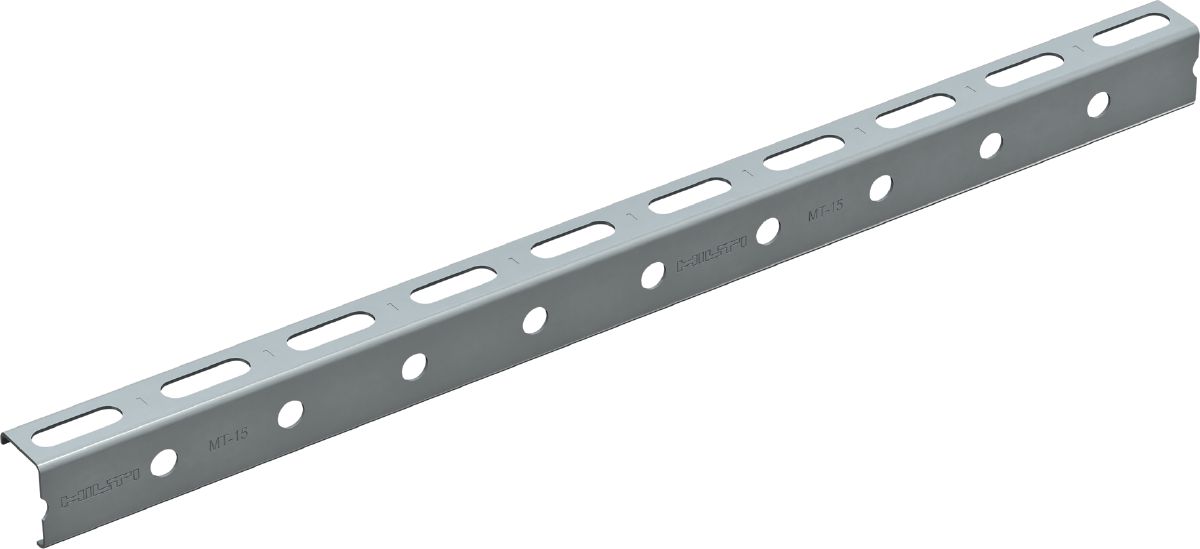

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Hilti

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Rail profilé en L MT-15 OC

Nominal	2 m
Length m	2
Material	steel
Rail type	MT-15
Thickness mm	1.5
Material grade	S280GD
Surface finish	Zinc-magnésium
Weight kg per m	0.678
Cross section mm2	85.2
Modulus e n per mm2	210000
Section modulus wz cm3	0.36
Section modulus wy1 cm3	0.57
Section modulus wy2 cm3	1
Environmental conditions	En extérieur, pollution faible à modérée
Max bending moment my nm	118
Moment of inertia iy cm4	1.27
Moment of inertia iz cm4	0.72
Radius of gyration iy cm	1.22
Radius of gyration iz cm	0.92
Center of gravity a e1 mm	11.9
Center of gravity b e2 mm	23.1
Allowable stress n per mm2	206.7
Lateral torsional buckling susceptible	true
