Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Knauf

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

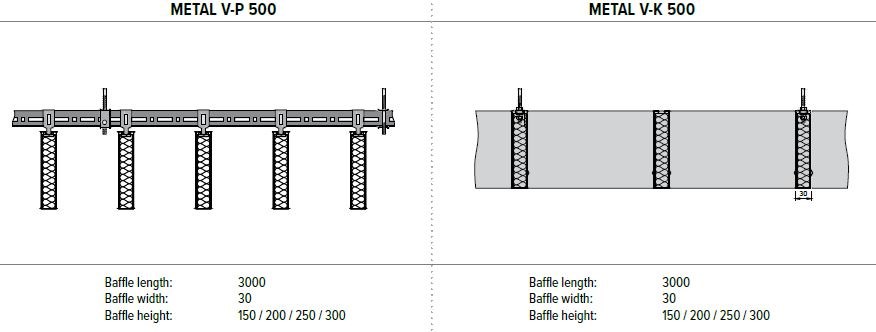

METAL Baffle Sky Element

Meaning	résultat de test de formaldéhyde le plus bas possible
Nominal	3000 x 3000 x 30, 6000 x 6000 x 30, 9000 x 6000 x 30
Material	Acier galvanisé post-laqué
Arrangement	Disposition croisée
Thickness mm	0.7
Fire standard	EN 13501-1
Colour options	RAL 9010; RAL 9003; RAL 9005; RAL 9006; RAL 9007; RAL 9016; Granit; Acier; Marbre vert; Cuivre; Chêne; Laiton; Grès; Béton; Frêne; Bambou naturel; Bambou caramel; Érable; Merisier d’Amérique; Noyer d’Amérique
Weight kg per m	1.7 - 3.1
Perforation code	Rg 2516
Perforation type	Perforation standard
Open area percent	16
Suspension system	Système de suspension directe par tige filetée
Emission class code	E1
Humidity resistance	90% RH
Acoustic performance	Valeurs acoustiques disponibles sur demande
Durability standards	EN ISO 14021; EN ISO 14025
Module dimensions mm	3000 x 3000 x 30, 6000 x 6000 x 30, 9000 x 6000 x 30
Reaction to fire class	A2-s1, d0
Perforation diameter mm	2.5
Indoor air quality standard	EN 13964
Acoustic absorption class code	A

No reviews yet.

Technical specifications
