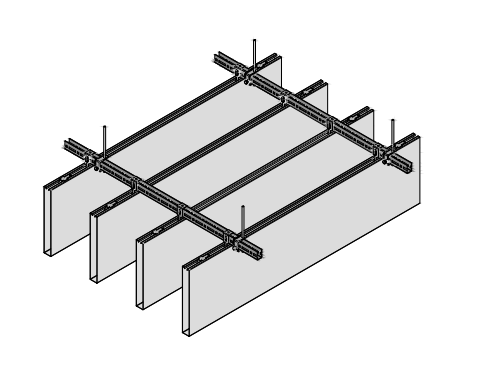

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Knauf

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

METAL Baffle Element — Groupé

Colour	RAL 9010
Meaning	résultat de test de formaldéhyde le plus bas possible
Nominal	1800 x 300 x 30 mm
Material	acier galvanisé post-laqué
Width mm	30
Height mm	150
Length mm	plusieurs dimensions
Weight kg m	1.7 - 3.1
Emission class	E1
Perforation code	Rg 2516
Perforation type	Perforation standard
Quality standard	EN 13964
Installation type	Groupé
Open area percent	16
Steel thickness mm	0.7
Humidity resistance	90% RH
Durability standards	EN ISO 14021, EN ISO 14025
Emission class meaning	résultat de test de formaldéhyde le plus bas possible
Reaction to fire class	A2-s1,d0
Perforation diameter mm	2.5
Indoor air quality class	A
Acoustic mat thickness mm	25
Reaction to fire standard	EN 13501-1
Acoustic mat density kg m3	25
