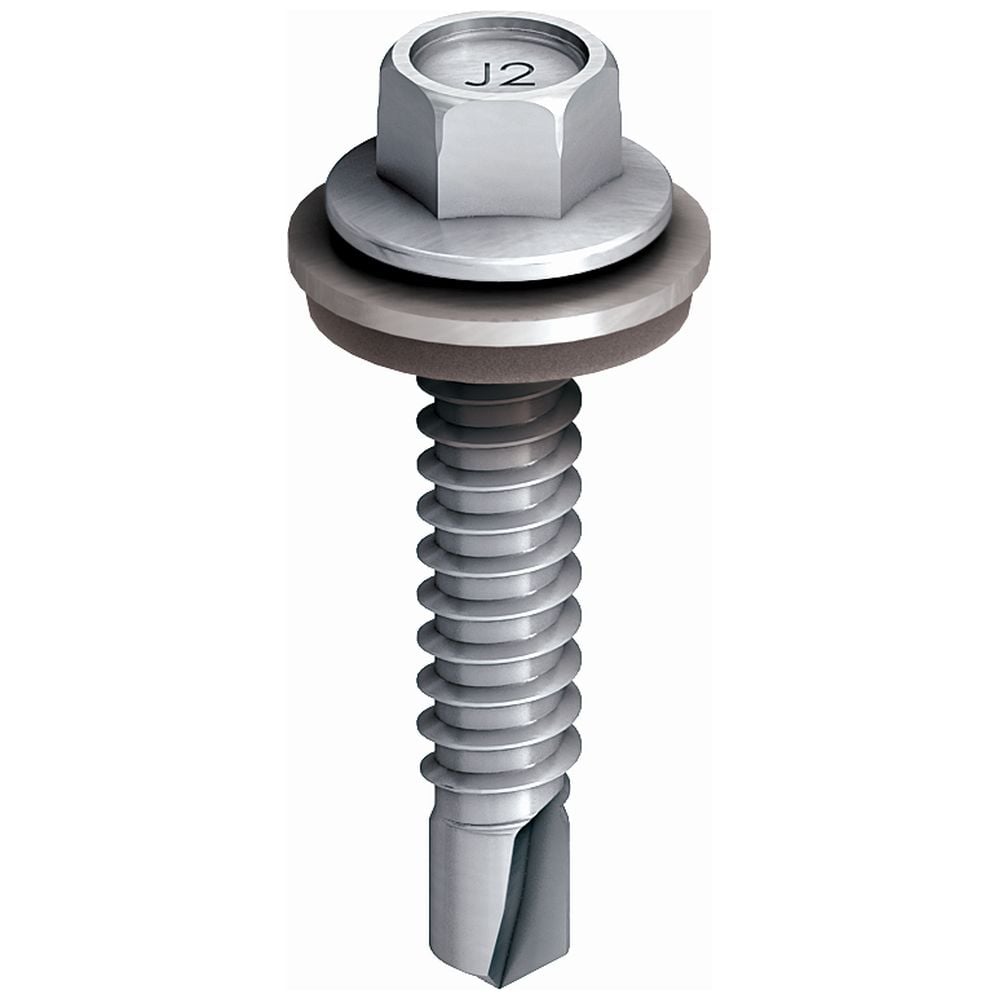

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

EJOT

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

JT2-6-6.3X32 F12 V16 EJOGUARD

Product	Nominal	Length mm	Screw type	Application	Clamping thickness mm	Self drilling material
JT2-6-5.5X20 F12 V16 EJOGUARD	5.5x20	20	J	Fastening profiled steel sheets to 1.5–4 mm steel substructure	0–5	2
JT2-6-5.5X25 F12 V16 EJOGUARD	5.5x25	25	J	Fastening profiled steel sheets to 1.5–4 mm steel substructure	0–10	2
JT2-6-6.3X22 F12 V16 EJOGUARD	22 mm	22	EJOT	Fastening profiled steel sheets to 2–5 mm steel substructure	0–7	Case-hardened steel, zinc-plated
JT2-6-6.3X25 F12 V16 EJOGUARD	25 mm	25	EJOT	Fastening profiled steel sheets to 2–5 mm steel substructure	0–10	Case-hardened steel, zinc-plated
JT2-6-6.3X32 F12 V16 EJOGUARD	32 mm	32	EJOT	Fastening profiled steel sheets to 2–5 mm steel substructure	0–17	Case-hardened steel, zinc-plated
JT2-6-6.3X38 F12 V16 EJOGUARD	38 mm	38	EJOT	Fastening profiled steel sheets to 2–5 mm steel substructure	0–23	Case-hardened steel, zinc-plated

Ean	4061245092522
Name	EJOT
Coating	EJOGUARD
Max rpm	1500
Material	Case-hardened steel, zinc-plated
Wrench size	SW3/8"
Certification	ETA-21/0420
Sealing washer	V16
Screw type code	J
Pieces per carton	500
Thread diameter mm	6.3
Drilling capacity mm	12
Sealing washer material	Zinc-plated steel
Sealing washer diameter mm	16
Self drilling material code	2
Sealing washer material code	V

No reviews yet.

Variants (6)
