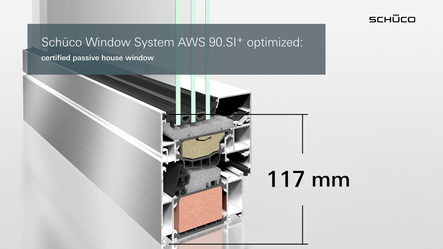

Fenêtre AWS 90.SI+ / Window AWS 90.SI+

Nominal	1700 (1 leaf), 2700 (2 leaves) x 2500 mm
Material	aluminium
Openings	side-hung, turn-and-tilt, bottom-hung, parallel sliding
Sw value	0.44
S w value	0.44
Tlw value	0.53
U g value	0.7
U value g	Ug = 0.7 W/m².K
U value w	Uw = 0.92 W/m².K
U w value	0.92
Aev rating	A4 E9A V*5B
Tl w value	0.53
Glazing type	triple glazing
Max width mm	1700
Max height mm	2500
Max weight kg	250
Opening types	side-hung, turn-and-tilt, bottom-hung, parallel sliding
Acoustic rw db	47
Frame depth mm	148
Astragal bar mm	148
Burglar resistance	RC3
Compatible systems	Schüco TipTronic
Air water wind class	A4 E9A V*5B
Burglar resistance class	RC3
Max glazing thickness mm	68
