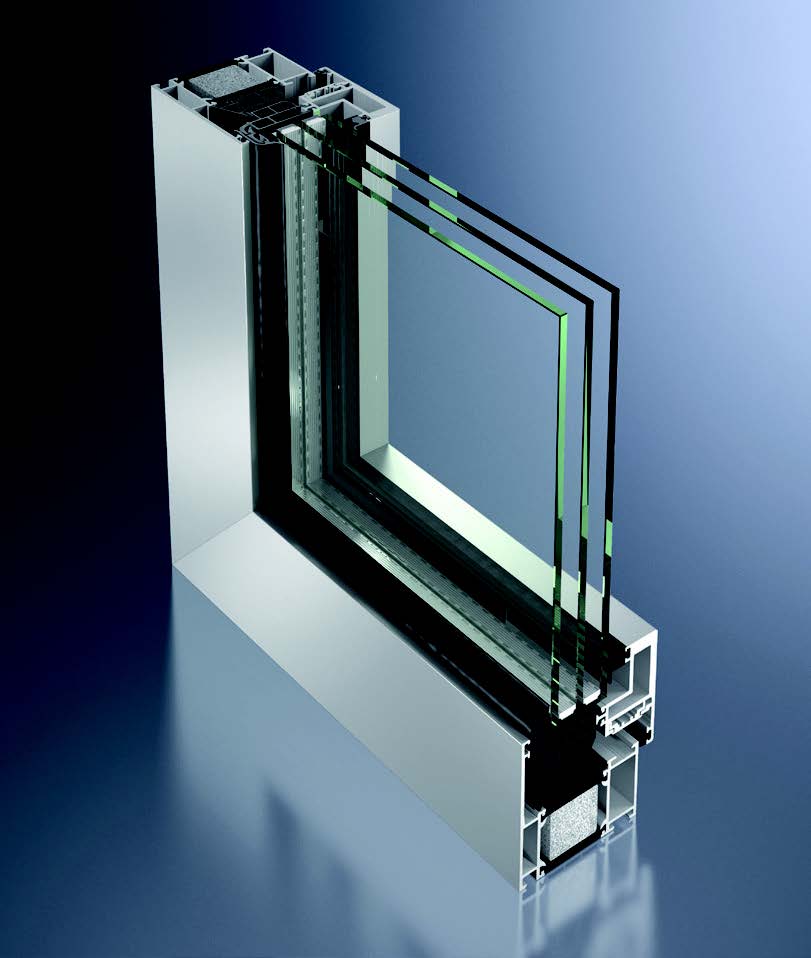

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Schüco

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Fenêtre AWS 75.II / Window AWS 75.II

Nominal	1700 (1 leaf), 2700 (2 leaves) x 2500 mm
Material	aluminium
Sw double	0.36
Sw triple	0.46
Tlw double	0.52
Tlw triple	0.55
Max width mm	1700
Dta reference	6/14-2206_V2
Max height mm	2500
Max weight kg	250
Opening types	in/outward, side-hung, top-hung, turn-and-tilt, bottom-hung, vert/hor pivot, parallel sliding, fire-fighter access
Acoustic rw db	43
Frame depth mm	132
Astragal bar mm	132
Ug w m2k double	1
Ug w m2k triple	0.7
Uw w m2k double	1.3
Uw w m2k triple	1.1
Aev classification	A4 E9A V*C4
Compatible systems	true
Air water wind class	A4 E9A V*C4
Tiptronic compatible	true
Certification reference	6/14-2206_V2
Burglar resistance class	RC3
Max glazing thickness mm	62
