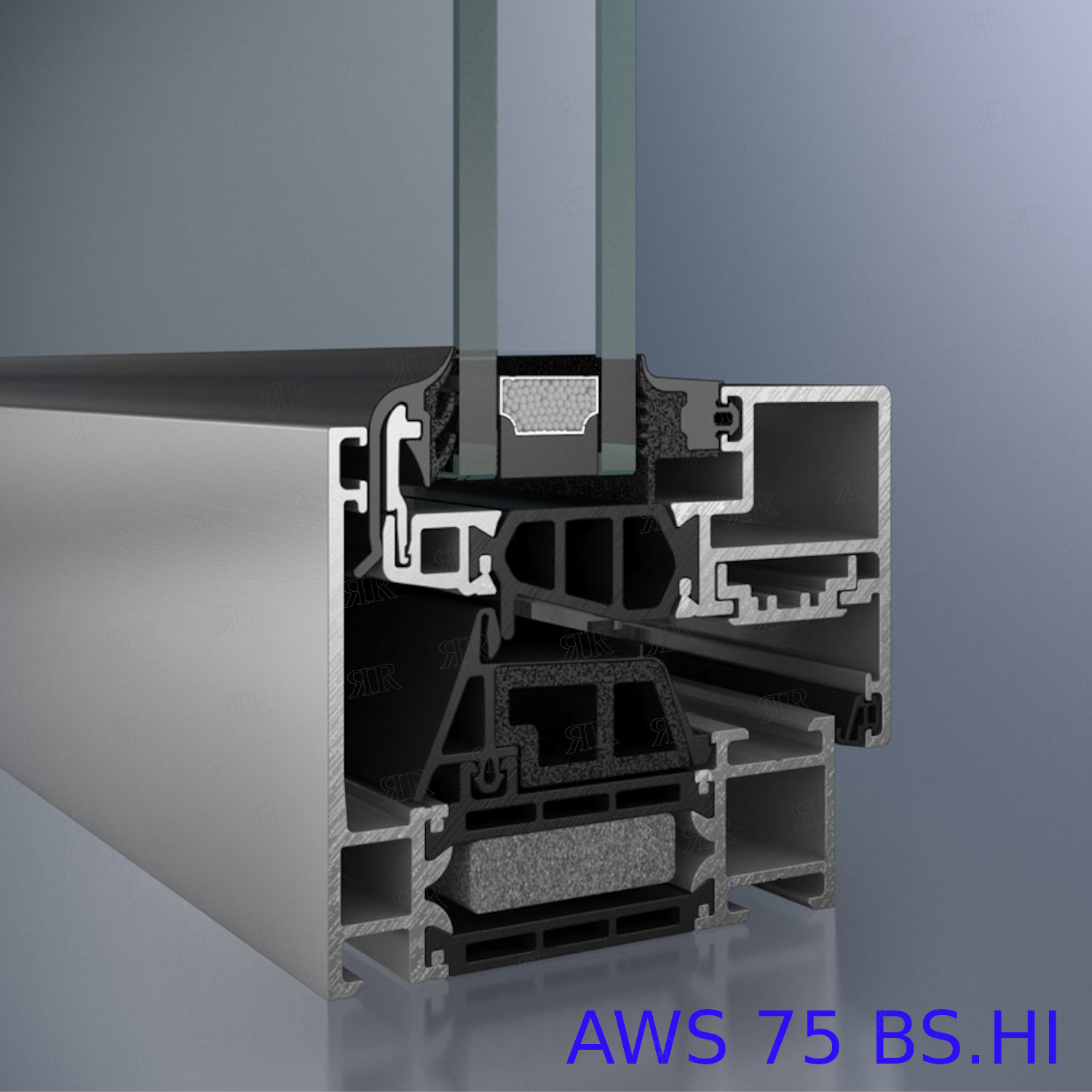

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Schüco

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Fenêtre AWS 75 BS.HI+ / Window AWS 75 BS.HI+

Nominal	1450 (1 leaf), 2600 (2 leaves) x 2200 mm
Material	aluminium
Sw value	0.46 (double), 0.48 (triple)
S w value	0.46
Tlw value	0.62 (double), 0.57 (triple)
U g value	1
U value g	Ug 1.0 (double glazing), Ug 0.6 (triple glazing)
U value w	Uw 1.3 (double glazing), Uw 1.0 (triple glazing)
U w value	1.3
Aev rating	A4 E9A V*C3
Tl w value	0.62
Max width mm	1450
Leaf width mm	83
Max height mm	2200
Max weight kg	130
Opening types	OF, OB, bellows, fireman's door
Frame depth mm	83
Compatible system	Schüco TipTronic
Compatible systems	Schüco TipTronic
Break in resistance	RC3
Air water wind class	A4 E9A V*C3
Certification status	DTA en cours d'instruction
Certification reference	DTA en cours d'instruction
Burglar resistance class	RC3
Max glazing thickness mm	37

No reviews yet.

Technical specifications
