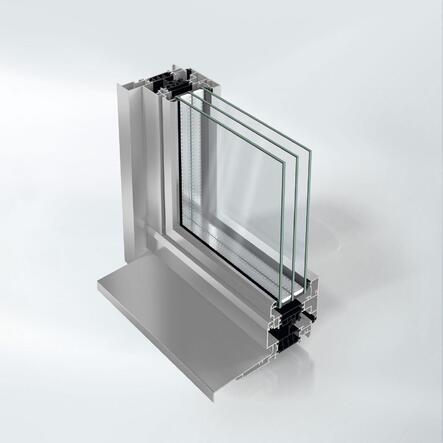

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Schüco

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Fenêtre AW CT 74 BD / Window AW CT 74 BD

Nominal	1100 (1 leaf), 2200 (2 leaves) x 2350 mm
Material	aluminium
Sw value	0.47
Ug value	1.0 W/m².K
Uw value	1.2 W/m².K
Aev class	A4 E9A V*C2
S w value	0.47
Tlw value	0.57
U g value	1
U w value	1.2
Tl w value	0.57
Max width mm	1100
Dta reference	6/18-2382_V2
Max height mm	2350
Max weight kg	75
Opening types	1 and 2 leaves, side-hung opening, turn-and-tilt, bottom-hung
Design options	straight
Frame depth mm	65
Astragal bar mm	65
Air water wind class	A4 E9A V*C2
Certification reference	6/18-2382_V2
Max glazing thickness mm	28
