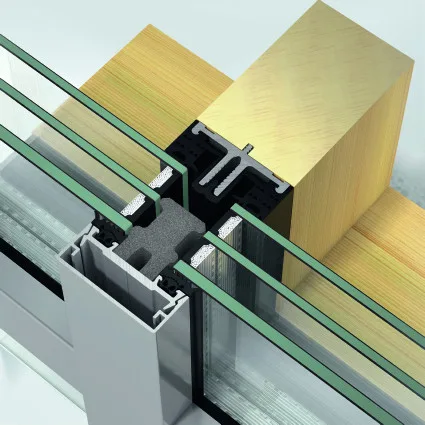

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Schüco

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Façades AOC 50/60/75 TI

Nominal	50/60/75 mm
Material	aluminium
Compliance	PACTE facade mixte Bois-Aluminium, March 2021
Installation	no visible connectors, installed from inside or outside
Substructure	timber
Face width mm	50
Max weight kg	520
Opening types	in/outward, side-hung, top-hung, turn-and-tilt
U value w m2k	0.8
Drainage levels	3
Connection system	Knapp T-cleats for wood mullion/transom
Sealing technology	seal and flex
Max glazing thickness mm	8

No reviews yet.

Technical specifications
