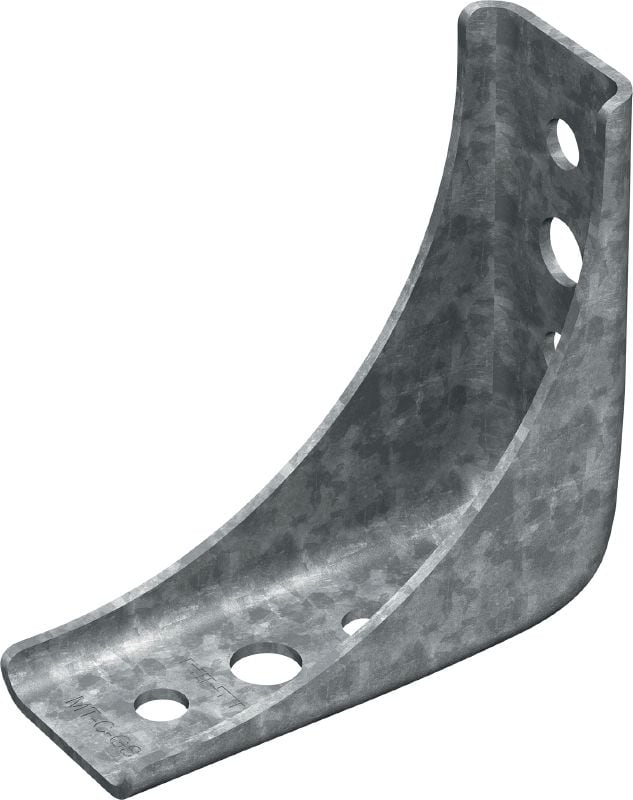

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Hilti

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Équerre et pied de rail MT-C-GS OC

Material	steel
Height mm	122.5
Length mm	122.5
Load fx kn	5.2
Load fy kn	2.6
Environment	outdoor, low to moderate pollution
Back size mm	50
Thickness mm	3
Material grade	Q355 or higher
Connection type	MT-TFB self-drilling bolts
Load fz plus kn	11.9
Hole diameter mm	14.7
Load fz minus kn	7.6
Pieces per carton	10
Compatible profiles mm	MT-70 to MT-100
Corrosion resistance class	hot-dip galvanized (HDG)

No reviews yet.

Technical specifications
