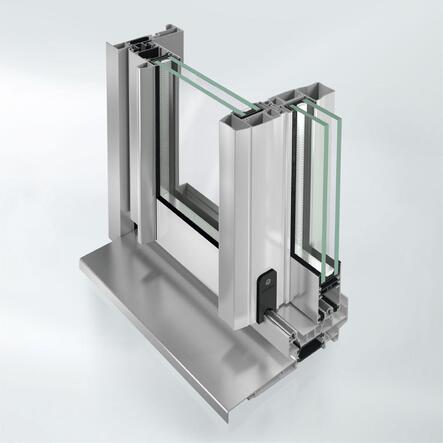

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Schüco

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Coulissant I.KAR / ASS 41 SC

Finish	AutomotiveFinish grey DB-703 (equiv. RAL 7016)
Nominal	1250x2500 mm (1 vantail) / 2500x2500 mm (2 vantaux)
Material	PVC-U / aluminium
Frame type	2 rails (bi-rails)
Max width mm	1250
Max height mm	2500
Max weight kg	80
Locking points	1 to 4
Acoustic rating	30
U value door wmk	1.4 W/m².K
U value glazing wmk	1.0 W/m².K
Glazing thickness mm	24
Air water wind rating	A4 E7B V*B3
Solar light performance	0.4
Side opening thickness mm	64
Central stile thickness mm	40

No reviews yet.

Technical specifications
