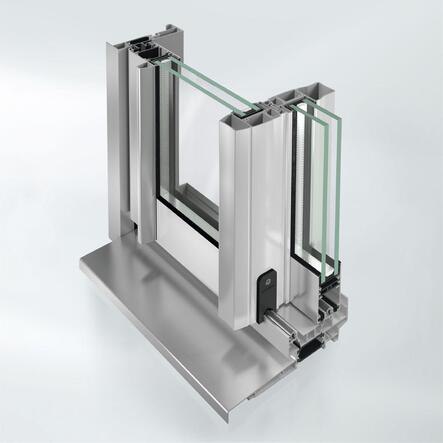

Coulissant ASS 41 SC Tri-rails monobloc coupe droite (Sliding System ASS 41 SC monoblock 3-track square cut)

Features	Galbé, Cubique
Material	aluminium
Handle type	Schüco Up&Slide
Max width mm	1500
Opening type	3 or 6 vantaux
Max height mm	2800
Max weight kg	80
Locking points	1 to 4
Threshold type	Recessed, compliant PMR1, with terrace smooth connection profile
U value door wmk	Uw = 1.4 W/m².K (Ug = 1.0 W/m².K)
Central mullion mm	40
Glazing thickness mm	160
Air water wind rating	A4 E6B V*B3
Solar light performance	0.52
Side opening thickness mm	64
