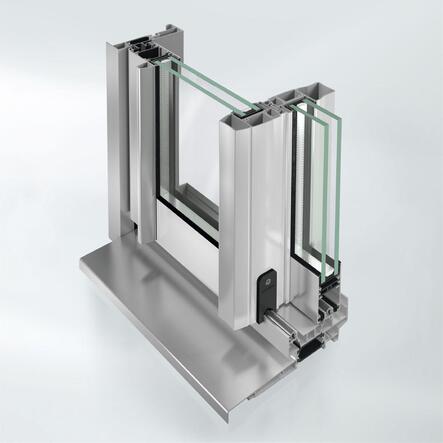

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Schüco

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Coulissant ASS 41 SC Galandage monobloc coupe droite (Sliding System ASS 41 SC In-wall square cut monoblock)

Features	Galbé, Cubique
Material	aluminium
Handle type	Schüco Up&Slide
Max width mm	1500
Opening type	mono rail (1-2 vantaux), bi-rails (2-4 vantaux)
Max height mm	2500
Max weight kg	80
Locking points	1 to 4
Threshold type	Recessed, mono rail or bi-rails, compliant PMR1
U value door wmk	Uw = 1.4 W/m².K (Ug = 1.0 W/m².K)
Central mullion mm	40
Glazing thickness mm	24
Air water wind rating	A3 E7B V*A2
Solar light performance	0.51
Side opening thickness mm	64

No reviews yet.

Technical specifications
