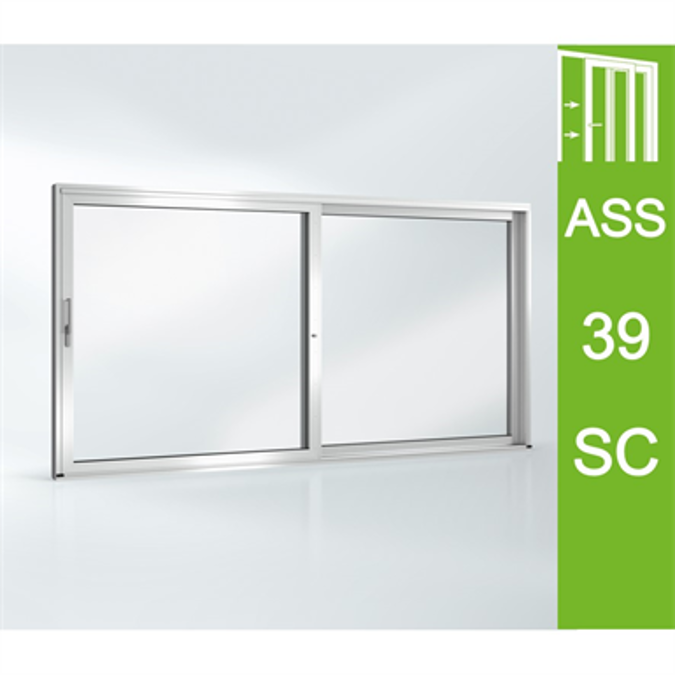

Coulissant ASS 39 SC / Sliding System ASS 39 SC

Nominal	1500 (1 leaf), 3000 (2 leaves) x 2800 mm
Assembly	45° angle brackets
Material	aluminium or stainless steel
Max width mm	1500
Threshold mm	20
Certification	6/16-2332
Max height mm	2800
Max weight kg	200
Frame depth mm	60
Acoustic rating	39 dB (-2;-3)
U value door wmk	Uw=1.4 W/m².K (Ug=1.0 W/m².K)
Glazing thickness mm	24
Air water wind rating	A4 E5B V*C3
Central opening max mm	40
Solar light performance	Sw 0.40
Side opening thickness mm	64
