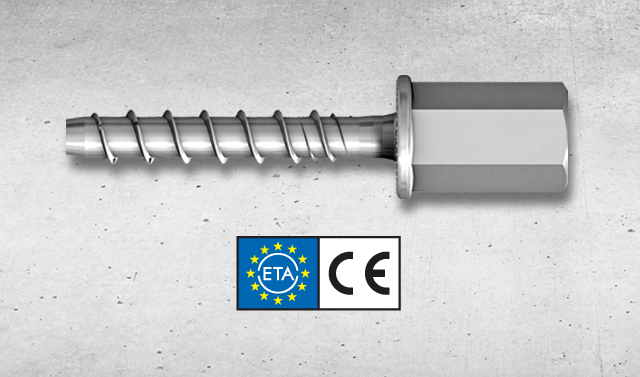

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

EJOT

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Concrete screw JC2-IT 6x35 M8/M10x30

Product	Nominal	Length mm	Thickness mm	Load tension cracked kn	Effective embedment depth mm
Concrete screw JC2-IT 6x35 M8/M10x30	6x35 M8/M10x30	35	1	1.4	27.6
Concrete screw JC2-IT 6x45 M8/M10x30	6x45 M8/M10x30	45	5	1.7	31.9

Ean	4061245075716
Name	EJOT
Drive	SW13
Material	Zinc-plated steel
Head style	Hexagon head SW13 with internal thread M8/M10
Screw type	Concrete screw
Application	Pipe brackets, Profile rails
Environment	dry indoor use
Manufacturer	EJOT
Product code	JC2-IT
Certification	ETA-17/1009, ETA-18/0221
Connection type	M8/M10 internal thread
Head diameter mm	14
Pieces per carton	50
Thread diameter mm	6
Concrete screw type	C
Load shear cracked kn	5.4
Approved base materials	Cracked concrete, Non-cracked concrete, Pre-stressed hollow core slab
Concrete screw material	2
Component thickness 1 mm	14
Load shear non cracked kn	5.4
Corrosion resistance class	zinc-plated
Concrete screw manufacturer	J
Load tension non cracked kn	1.4
Concrete screw head geometry	IT
