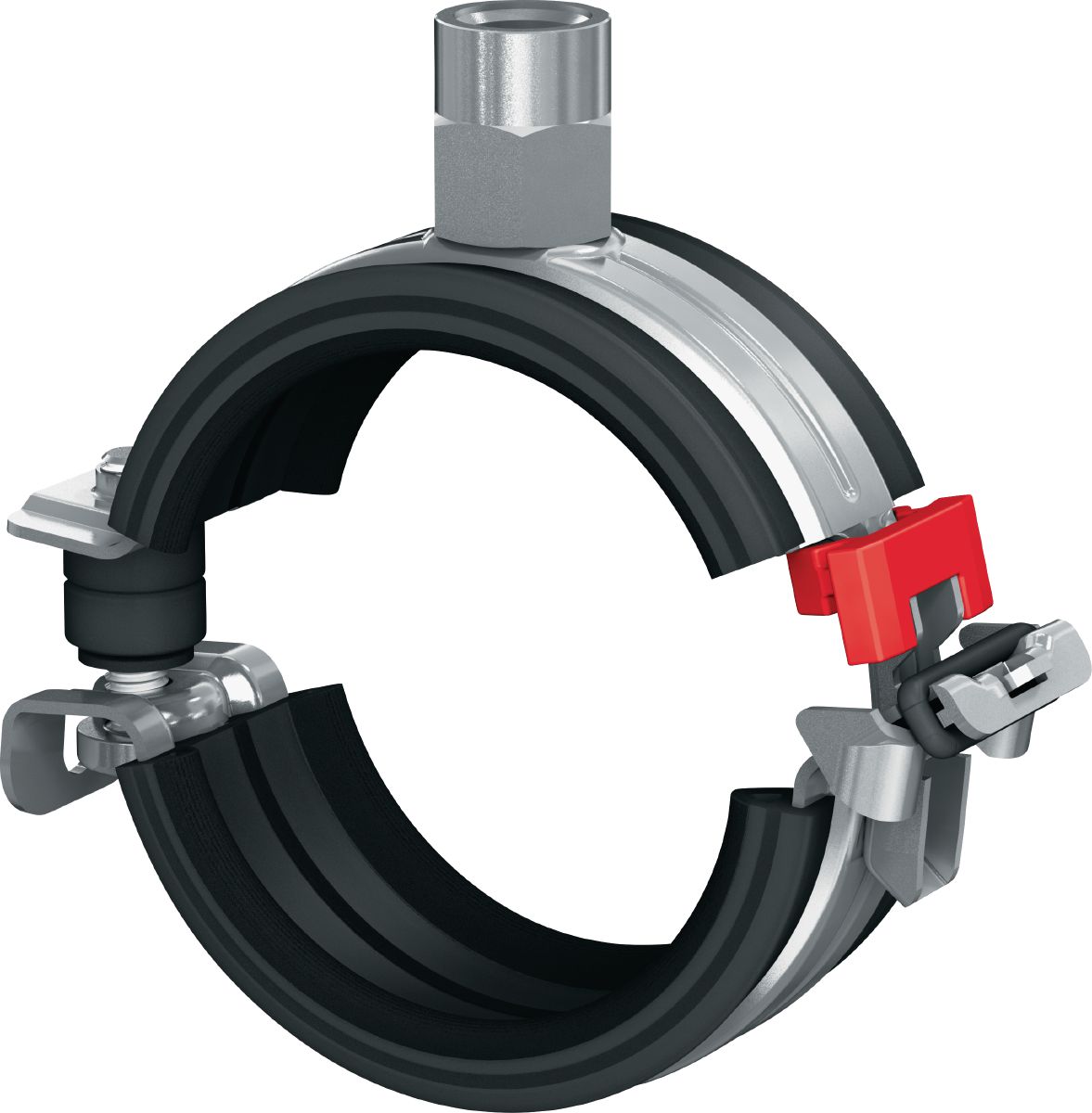

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Hilti

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Collier Ultimate à fermeture rapide et glissant MPN-G M8/M10

Product	Nominal	Width mm	Max load n	Designation	Diameter mm	Clamping screw
Collier Ultimate à fermeture rapide et glissant MPN-G M8/M10	75 mm	53	1400	MPN-G 75 B	75	M6
Collier Ultimate à fermeture rapide et glissant MPN-G M8/M10	90 mm	57	1400	MPN-G 90 B	90	M8
Collier Ultimate à fermeture rapide et glissant MPN-G M8/M10	110 mm	63	1800	MPN-G 110 B	110	M8
Collier Ultimate à fermeture rapide et glissant MPN-G M8/M10	125 mm	71	1800	MPN-G 125 B	125	M8
Collier Ultimate à fermeture rapide et glissant MPN-G M8/M10	135 mm	80	1800	MPN-G 135 B	135	M8
Collier Ultimate à fermeture rapide et glissant MPN-G M8/M10	160 mm	91	1800	MPN-G 160 B	160	M8

Thread	M8, M10
Material	steel
Surface finish	Galvanisée
Connection type	M8, M10
Product category	Ultimate
Section width mm	24
Sound insulation	19 dB (A)
Pieces per carton	10
Clamping torque nm	3
Insulating material	Caoutchouc EPDM
Material composition	DD11 - DIN EN 10111
Section thickness mm	2
Resistance temperature	-50 - 110 °C
Insulating material hardness	50° ±5° Shore A
Distance tube center to top mm	39
Max distance from tube center mm	31
