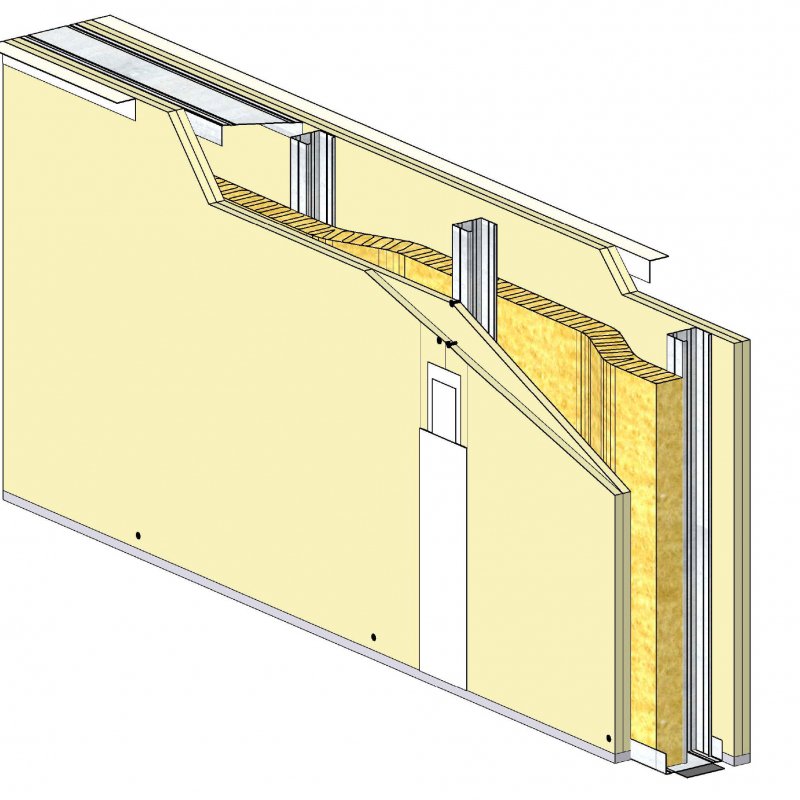

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Knauf

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Cloisons KM 175/125-50

Product	Nominal	Frame type	Max weight kg m2	Total thickness mm	Max height double stud 045m	Max height double stud 090m
Cloisons KM 98/48-50	98/48-50	M 48/50	48.2	98	4.95	4.2
Cloisons KM 175/125-50	175/125-50	M 125/50	49.9	175	7	6.75
Cloisons KM 200/150-50	200/150-50	M 150/50	50.5	200	7	7

Material	gypsum
Width mm	900
Board type	KA 25 Phonik+
Plate type	KA 25 Phonik+
Regulation	DTA 9/14-1008_V3 du 26.01.22 valide jusqu'au 31.12.28
Cladding type	Parements simples
Plate width m	0.9
Screw spacing mm	250
Installation standard	DTA 9/14-1008_V3 du 26.01.22 valide jusqu'au 31.12.28
Max weight no wool kg m2	49.9
Plate count and thickness	2 x 25
Max height single stud 045m	6.75
Max height single stud 090m	5.7
Acoustic insulation thickness mm	100
Sound insulation rw c with insulation	59 E
Sound insulation rw c without insulation	47 E
