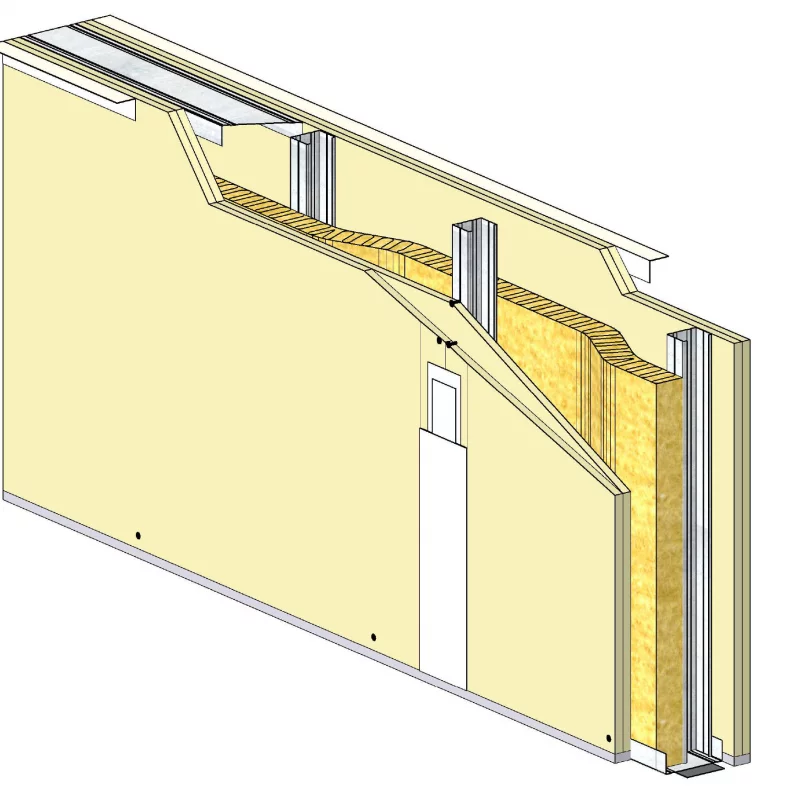

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Knauf

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Cloison KMA 11 Parement Simple 140/48-50

Nominal	140/48-50
Material	gypsum
Width mm	900
Board type	KS 25
Regulation	DTA 9/15-1004_V4 du 24.03.23 valide jusqu'au 28.02.30
Plate count	1+1
Plate width m	0.9
Framework type	M 48/50
Fire resistance	EI 60 a
Starter profile	Rail 90
Internal void mm	90
Max weight kg m2	48.2
Starting profile	Rail 90
Internal cavity mm	90
Total thickness mm	140
Fire test reference	PV Efectis 13-A-719 Rec. 19/1 et Ext. 15/1
Installation standard	DTA 9/15-1004_V4 du 24.03.23 valide jusqu'au 28.02.30
Insulation thickness mm	2
Acoustic mineral wool ra	56 S
Acoustic vegetable wool ra	55 E
Acoustic mineral wool basis	Simulation AcouS-STIFF
Max height double stud 045 m	3.15
Max height double stud 090 m	2.65
Acoustic vegetable wool basis	Estimation
Max height double stud 045 mm	3150
Max height double stud 090 mm	2650
Acoustic mineral wool thickness mm	2x45
Acoustic vegetable wool thickness mm	2x45
