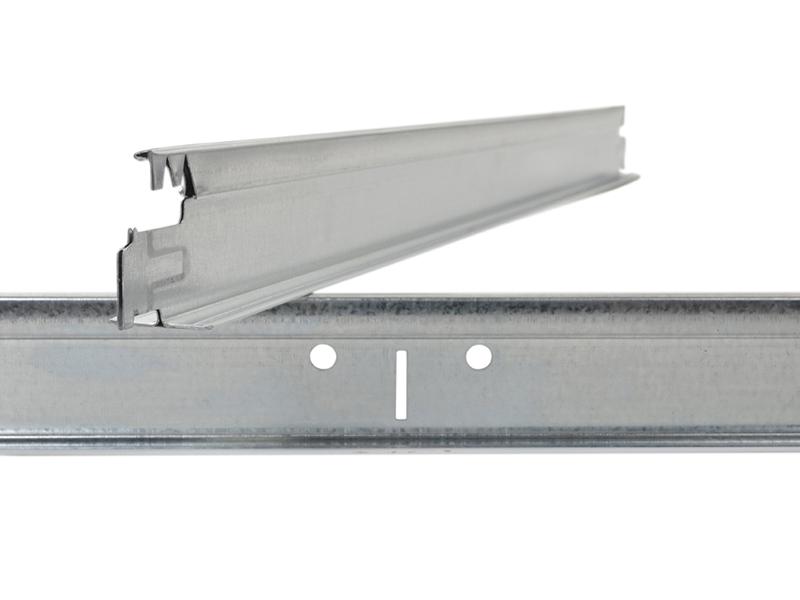

Chicago Metallic™ T35 Hook Longspan 8650 - Entretoise T35 x 75 mm à crochet

Colour	001, 00, 88, 04
Nominal	75x2400 mm
Material	acier galvanisé
Edge type	Apparent
Height mm	75
Length mm	2400
Content lm	19.2
Content pcs	8
Light count	3
Profile type	T35
Recyclability	Totalement Recyclable
Connection type	Semelle à coupe droite
Slot centres mm	600
Weight kg carton	15.8
Weight kg pallet	791
Cartons per pallet	50
Corrosion resistant	Classe B
Fire reaction class	A1
Load capacity table	Distance entre porteurs 1250mm / entretoises 1500x625mm (poids 5,7-9,6): portée max 2660,2580,2430,2200,1910,1740,1470 kg/m² @ suspension 2,5-15m; Distance entre porteurs 1250mm / entretoises 1875x625mm (poids 2,6-4,5): portée max 2590,2480,2260,1850 kg/m² @ suspension 2,5-4m
